Tesla Home Charging: Complete Guide for Owners

Understand tesla home charging basics

Charge your tesla at home provide convenience and cost savings compare to rely alone on public charging stations. Home charging allow you to wake up to an amply charge vehicle every morning, practically like have your own personal gas station. This guide cover everything you need to know about set up and optimize your tesla home charge system.

Tesla home charging equipment options

Mobile connector

Every tesla come with a mobile connector, which serve as your basic charging solution. This portable charger plugs into standard household outlets and include adapters for different outlet types:

•
  120v outlet (nFEMA5 15 )

  the standard household outlet provide level 1 charge at around 3 5 miles of range per hour
•
  240v outlet (nFEMA14 50 )

  a more powerful outlet normally use for electric dryers or ovens, provide level 2 charge at around 30 miles of range per hour

The mobile connector is perfect for occasional charging or when traveled, but most owners finally upgrade to a more permanent solution for daily use.

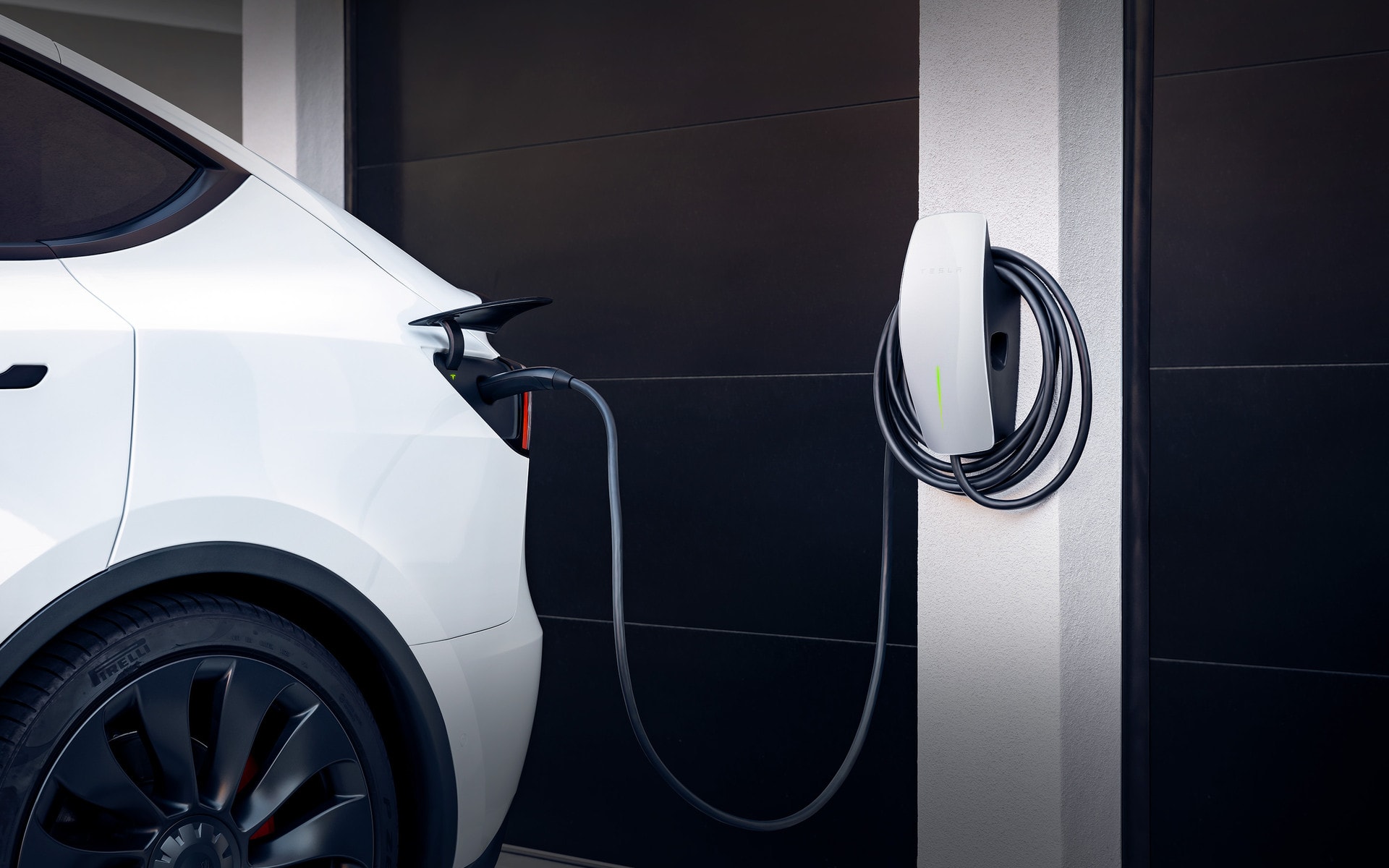

Wall connector

The tesla wall connector represents a significant upgrade from the mobile connector. This hardwired charging station mounts permanently on your garage wall or outside your home and offer several advantages:

• Fasting charge speeds (up to 44 miles of range per hour depend on your tesla model )
• Weatherproof design for indoor or outdoor installation
• Sleek appearance that complement your tesla
• Wi-Fi connectivity for monitoring and updates
• Power-sharing capability ( m(tiple wall connectors can share a single electrical circuit )
  )

While more expensive than use the mobile connector, the wall connector provides greater convenience and immobile charge times for daily use.

Third party charging stations

Several non tesla charge stations work with tesla vehicles when use with an adapter. Popular options include:

• Charge point home flex
• Juice box
• Grizzle
• Wall box pulsar plus

These units typically cost less than the tesla wall connector but may not integrate as seamlessly with the tesla ecosystem.

Assess your home’s electrical capacity

Before install any charge equipment, you need to understand your home’s electrical system and its limitations.

Electrical panel capacity

Your home’s electrical panel have a maximum capacity, typically 100 200 amps for most houses. Add a tesla charger require available capacity on your panel. To determine if your panel can handle a tesla charger:

Source: tesla.com

• Check your main electrical panel for its amp rating (normally label on the main breaker )
• Assess how many high draw appliances you already have (hHVAC electric water heater, electric range, etc. )
• Consider have an electrician perform a load calculation to determine available capacity

If your panel lack sufficient capacity, you might need a panel upgrade, which can add significant cost to your charge setup.

Circuit requirements

Different charging options require different electrical circuits:

•
  Mobile connector with standard outlet

  uses exist 15 amp circuit
•
  Mobile connector with FEMA 14 50

  require a dedicated 50 amp circuit
•
  Wall connector

  can bbe configuredfor 15 60 amp circuits, with 60 amps provide maximum charge speed

The higher the amperage, the fasting your tesla will charge. Yet, higher amperage circuits require thicker wiring and more electrical panel capacity.

Installation considerations for home charging

Location planning

Choose the right location for your charge equipment involve several factors:

•
  Proximity to parking spot

  the charger should be within reach of where you typically park your tesla
•
  Distance from electrical panel

  longer wire run increase installation costs
•
  Indoor vs. Outdoor installation

  outdoor installations require weatherproof equipment and may need additional permits
•
  Cable management

  will consider how the charging cable will be will store when not in use

Ideally, install your charger in a location that balance convenience with installation practicality.

Professional vs. DIY installation

While some homeowners with electrical experience might consider install aFEMAa 14 50outletst themselves, tesla powerfully recommend professional installation for all charge equipment, specially the wall connector. Professional installation offer several benefits:

• Ensures compliance with local electrical codes
• Reduce risk of electrical hazards
• May be required to maintain equipment warranty
• Include proper permits and inspections

Tesla maintains a network of recommend electricians familiar with their charge equipment requirements.

Permits and regulations

Most jurisdictions require electrical permits for installEVv charging equipment. The permitting process typicallyinvolvese:

• Submit electrical plans to your local building department
• Pay permit fees
• Scheduling inspections after installation
• Obtain final approval

Some areas besides offer expedite permitting for EV charging installations to encourage adoption. Check with your local building department for specific requirements.

Cost analysis of home charging options

Equipment costs

The initial investment for tesla home charging varies base on your choose equipment:

•
  Mobile connector

  include with new tesla vehicles or available for purchase ((oughly $ $200275 )
  )
•
  Wall connector

  roughly $$400$500
•
  Third party level 2 chargers

  $$400$700 depend on features

Installation costs

Installation expenses vary wide base on your home’s electrical setup and the complexity of the installation:

•
  Basic FEMA 14 50 outlet installation

  $$200$500 if your panel is nearby and have available capacity
•
  Wall connector installation

  $$500$1,500 for standard installations
•
  Complex installations

  $$1500 $4,000 + if panel upgrades, long wire runs, or trench are rerequired

Operate costs and savings

Home charging typically cost importantly less than public charging or gasoline:

• Average residential electricity rates range from $0.10 $0.20 per kkilowatt-hour((wkWh)
• A tesla model 3 with a 75 kWh battery costs roughly $7.50 $15 for a full charge at home
• The same charge at a supercharger might cost $15 $30

Most tesla owners recoup their charge equipment and installation costs through fuel savings within 1 3 years compare to gasoline vehicles.

Optimize your home charging experience

Set up charge schedules

Tesla vehicles allow you to schedule charge during off-peak hours through the touchscreen or mobile app. Benefits of schedule charging include:

• Lower electricity rates during off-peak hours (typically all night )
• Reduced strain on the electrical grid
• Battery conditioning in cold weather (the vehicle can warm the battery before charge )

To set up schedule charging, navigate to the charge settings in your tesla’s touchscreen or mobile app and select your prefer charging times.

Manage charging limits

For optimal battery longevity, tesla recommend:

• Set everyday charge limit to 80 90 % for regular use
• Exclusively charge to 100 % for long trips
• Avoid let the battery regularly drop below 20 %

These practices help preserve battery capacity over the long term. You can adjust charge limits through the vehicle touchscreen or mobile app.

Monitor energy usage

Several tools help track your tesla’s energy consumption:

• The tesla app provide charge history and costs
• Wall connector usage statistics via Wi-Fi connection
• Third party energy monitoring systems like sense or emporia

Monitoring usage help optimize charging habits and track savings compare to conventional vehicles.

Troubleshoot common home charging issues

Slow charging speeds

If your tesla charge slower than expect, consider these potential causes:

• Vehicle settings limit charge rate
• High battery temperature
• Shared circuit with other high draw appliances
• Voltage drop due to long wire runs
• Adapter or connector issues

Check your vehicle’s charge screen for warnings or reduce amperage indicators that might explain slow charging.

Connection problems

If your tesla doesn’t begin will charge when will plug in:

• Verify the outlet have power
• Check for trip circuit breakers
• Inspect the charge cable and connector for damage
• Try to reset the mobile connector or wall connector
• Reboot your vehicle’s touchscreen

Error messages

Common charge error messages and their solutions include:

Source: hitechwork.com

•
  ” cChargeequipment fault ”

  may indicate a problem with the charge equipment; ttry to usea different charger or outlet
•
  ” gGroundfault detect ”

  indicate a potential electrical safety issue; consult an electrician
•
  ” cChargeport door malfunction ”

  may require manual opening of the charge port or service

For persistent errors, contact tesla customer support or schedule service through the mobile app.

Upgrade your home charging setup

When to consider an upgrade

You might need to upgrade your charge setup if:

• You purchase a tesla with a larger battery capacity
• Your daily drive distance increases
• You add a second tesla to your household
• Charge times become inconveniently long

Multi vehicle charging solutions

For households with multiple teslas, consider:

• Multiple wall connectors with power-sharing capability
• Alternate charge schedules
• Combination of home charging and workplace / public charging

Tesla wall connectors can be configured to share a single circuit, mechanically allocate power between multiple vehicles.

Solar integration

Pair your tesla charge with solar power offer additional benefits:

• Air reduce charge costs
• True zero emission driving
• Energy independence
• Potential for tesla Powerwall integration for backup power

Tesla’s energy ecosystem allow for seamless integration between solar panels, Powerwall battery storage, and vehicle charging.

Conclusion: make the most of home charging

Charge your tesla at home transform the ownership experience by eliminate frequent visits to publicly charging stations or gas stations. With the right setupyou willll enjoy the convenience of will start each day with a full ” ank “” ile will save money will compare to both public charging and traditional fuel costs.

Begin with an honest assessment of your driving needs and electrical capacity, so choose the appropriate charging solution. Whether you opt for the simplicity of use your mobile connector with a FEMA 14 50 outlets or invest in a permanent wall connector, home charging represent one of the about significant advantages of tesla ownership.

Remember that your charge needs may evolve over time, hence design your initial setup with potential future upgrades in mind. With proper planning and installation, your tesla home will charge system will provide years of convenient, cost-effective operation.
