Automotive Electrical Systems: Understanding Components and Troubleshooting
Understand automotive electrical systems
The automotive electrical system is the backbone of your vehicle’s functionality. Modern vehicles rely on complex electrical networks to control everything from engine performance to cabin comfort. Understand how these systems work can help you diagnose problems and perform basic maintenance.
The five major components of automotive electrical systems
Every automotive electrical system consist of five fundamental parts that work unitedly to power your vehicle:
1. Battery
The battery serve as the primary storage device for electrical energy in your vehicle. It provides the initial power need to start the engine and supply electricity when the engine is dispatch. Most modern vehicles use 12 volt lead acid batteries, though some hybrid and electric vehicles employ more advancedlithium-ionn batteries.
The battery stores chemical energy and convert it to electrical energy when needed. During normal operation, the alternatorechargesge the battery, maintain its charge level for future use.
2. Alternator
Once the engine is run, the alternator takes over as the primary source of electrical power. Connect to the engine by a belt, the alternator generate ac( alternate current) electricity, which is so cconvertedtoDCc( direct current) for use in the vehicle’s systems.
The alternator not merely power the vehicle’s electrical components while the engine run but besides recharge the battery. I will fail alternator will finally lead to a will drain battery and electrical system failure.
3. Starter
The starter motor converts electrical energy from the battery into mechanical energy to crank the engine. When you turn the ignition key or press the start button, the starter engages with the engine’s flywheel, turn the crankshaft to begin the combustion process.
This high torque motor draws significant current from the battery during the starting process, which is why a weak battery much manifest as slow cranking or failure to start.
4. Wire harness
The wiring harness is an organize bundle of wires that connect all electrical components in the vehicle. This complex network route power from the battery and alternator to various systems and components throughout the vehicle.
Modern vehicles contain miles of wiring organize into cautiously route harnesses. These wires vary in gauge (thickness )depend on the amount of current they need to carry, with heavier gauge wires use for high current applications like starter motors.
5. Fuses and relays
Fuses and relays protect the electrical system from damage due to overcurrent conditions. Fuses are design to fail safely when excessively many current flows through them, prevent fires or damage to expensive components.
Relays are electromagnetic switches that use a small control current to switch a larger current on or dispatch. They allow low current switches to control high current devices like headlights, cool fans, and fuel pumps.
How automotive relays work
Automotive relays are basically electromagnetic switches that allow a low current circuit to control a high current circuit. This is specially useful for components that draw significant power, such as headlights, starter motors, and cool fans.

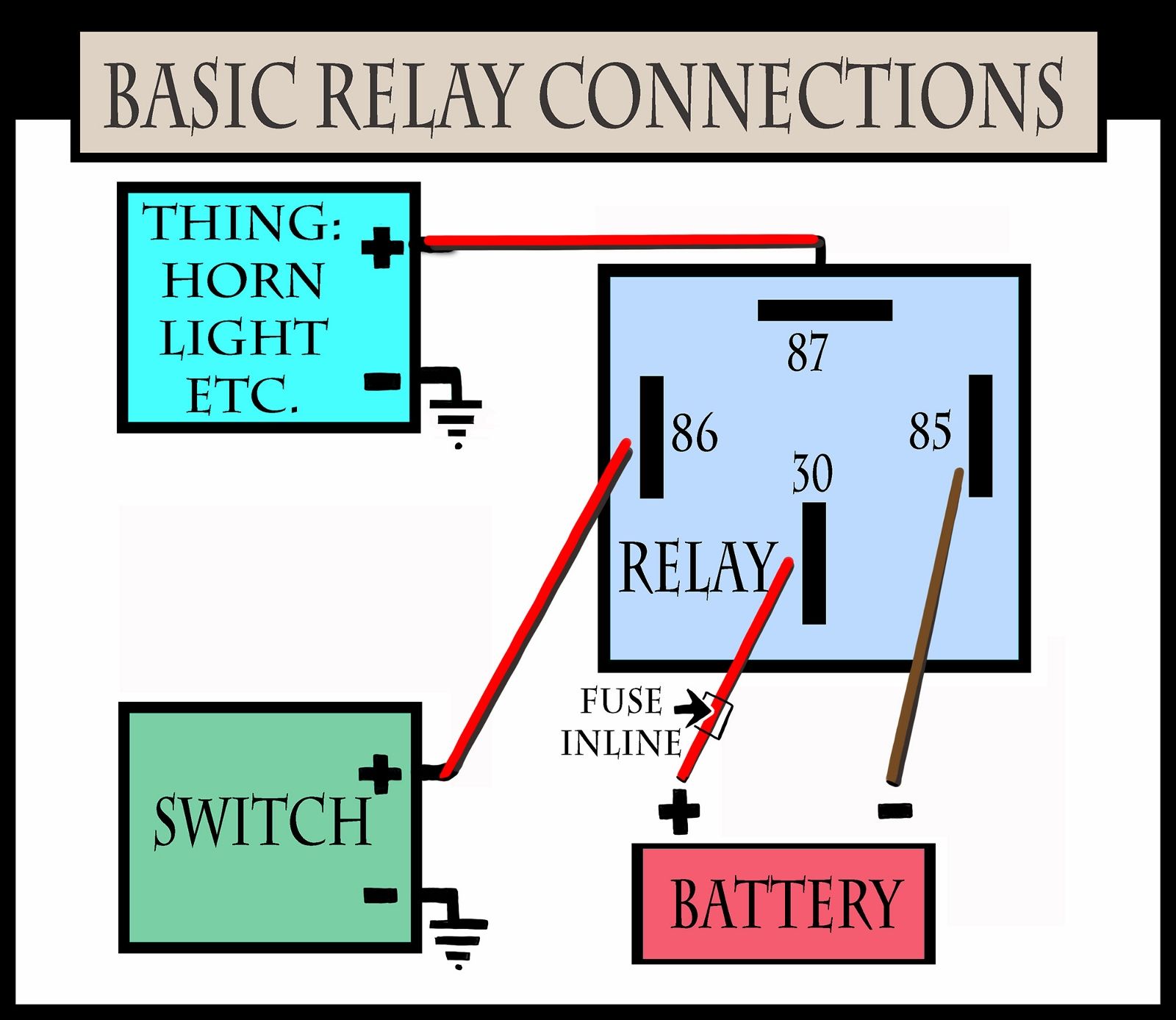

Source: relays.weebly.com
Basic relay structure
A typical automotive relay consists of:
- An electromagnet (coil )
- A set of contacts (typically commonly open and/or commonly close )
- A frame or housing
- Terminal connections
How relays function
When current flow through the relay’s electromagnet, it creates a magnetic field that attract an armature. This armature movement change the state of the contacts, either close a usually open circuit or open a usually close circuit.
This simple mechanism allows a small current from a dashboard switch to control practically larger currents need for power hungry components. For example, when you flip your headlight switch, itsendsd a small current to the headlight relay, which so complete the high current circuit to power your headlights.
Common relay terminal configurations
Most automotive relays use a standardized 4 or 5 pin configuration:
- Terminal 30: connect to the battery (power input )
- Terminal 85: one side of the electromagnet coil (normally ground )
- Terminal 86: the other side of the electromagnet coil (control signal )
- Terminal 87: usually open contact (connect to terminal 30 when relay is eenergize)
- Terminal 87a: usually close contact (disconnects from terminal 30 when relay is eenergize) ot present on all relays
How to test automotive relays
Faulty relays can cause numerous electrical problems in vehicles. Luckily, test a relay is comparatively straightforward with the right tools and knowledge.
Visual inspection
Before perform electrical tests, visually inspect the relay for signs of damage:
- Look for melted plastic, burn marks, or discoloration
- Check for corrosion on the terminals
- Ensure the relay is decent seat in its socket
Test with a multimeter
A digital multimeter is the virtually versatile tool for test relays:
- Set your multimeter to measure resistance (ohms )
- Test the coil resistance by measure between terminals 85 and 86 (typically 40 120 ohms for a 12v relay )
- Test continuity between terminals 30 and 87a (should show continuity when the relay is not energize )
- Test continuity between terminals 30 and 87 (should show no continuity when the relay is not energize )
Test with a battery
You can besides test a relay use a 12v battery or power source:
- Connect terminal 85 to the negative battery terminal
- Connect terminal 86 to the positive battery terminal
- You should hear an audible click as the relay activate
- Use a multimeter to verify that terminals 30 and 87 nowadays have continuity, while 30 and 87a do not
Relay substitution
If you suspect a relay is faulty but aren’t certain, the simplest test is oftentimes substitution:
- Locate an identical relay in your vehicle (oftentimes find in the fuse box )
- Swap the suspect bad relay with a know good one
- If the problem move with the relay, you’ve identified the faulty component
How an automotive thermostat works
While not part of the electrical system, the automotive thermostat is a critical component that regulate engine temperature. Understand how itsworksk can help diagnose overheat issues.
Purpose and function
The thermostat serve as a valve that control coolant flow between the engine and radiator. Its primary functions are:
- Allow the engine to reach operate temperature speedily
- Maintain optimal engine temperature during operation
- Prevent overcool which can reduce efficiency and increase emissions
Thermostat operation
The thermostat contain a temperature sensitive wax element that expand when heated. Here’s how iworksrk:
- When the engine is cold, the thermostat remains closed, prevent coolant from flow to the radiator
- This allows the engine to warm up speedily by keep the coolant circulate exclusively within the engine block
- As the engine reach operate temperature (typically 180 195 ° f or 82 90 ° c ) the wax element expand
- This expansion push a pin that open the valve, allow coolant to flow to the radiator
- The thermostat modulate its opening base on temperature, maintain consistent engine heat
Test a thermostat
A fail thermostat can cause either overheat (if stuck close )or poor heater performance and increase fuel consumption ( ( stick open ).)ere’s how to test one:
- Remove the thermostat from the vehicle
- Note the temperature rating stamp on the thermostat (ordinarily 180 ° f or 195 ° f )
- Suspend the thermostat in a pot of water with a thermometer
- Heat the water gradually and observe when the thermostat begins to open
- It should start open at around its rate temperature and be full open about 20 ° f high
What does map stand for in automotive?
Map stands for manifold absolute pressure. This critical sensorplaysy a vital role in engine management and fuel delivery systems.
Function of the map sensor
The map sensor measures the pressure inside the intake manifold relative to a perfect vacuum( absolute pressure). This information help the engine control module ((cECM)etermine:
- Engine load
- Appropriate fuel to air ratio
- Ignition timing
- Turbocharger boost pressure (in turbocharge engines )
How map sensors work
Map sensors typically use a pressure sensitive element that change electrical resistance or capacitance base on manifold pressure. As engine load increases, manifold pressure increases, and the sensor signal this change to the ECM.
In course aspirate engines, map readings are typically below atmospheric pressure (vacuum ) In turbocharge or supercharge engines, map readings can exceed atmospheric pressure during boost conditions.
Map vs. MAF sensors
Some vehicles use a mass air flow (mMAF)sensor rather of or in addition to a map sensor. While both help determine engine load:
- Map sensors measure pressure in the intake manifold
- MAF sensors instantly measure the mass of air enter the engine
Many modern vehicles use both sensors for redundancy and more precise engine management.
What does close loop mean in automotive?
Closed loop refer to a feedback control system use in modern fuel injection systems to maintain optimal air fuel ratios.
Open loop vs. Closed loop operation
Modern vehicles operate in two distinct modes:
-
Open loop:
During initial startup and warm up, the engine run on predetermine fuel maps without feedback -
Closed loop:
Once the engine reach operate temperature, the system begins use oxygen sensor feedback to adjust fuel delivery in real time
How closed loop systems work
In closed loop operation:

Source: blog.delcity.net
- Oxygen sensors in the exhaust stream measure the oxygen content of exhaust gases
-
This measurement indicate whether the air fuel mixture is rich (excess fuel )or lean ( (cess air )
) - The engine control module uses this feedback to adjust fuel injector pulse width
- This continuous adjustment maintains the ideal air fuel ratio( roughly 14.7:1 for gasoline engines)
- The system perpetually cycle between slenderly rich and slenderly lean conditions
Benefits of closed loop operation
Closed loop systems provide several advantages:
- Reduced emissions through more precise fuel control
- Improved fuel economy
- Optimal catalytic converter operation
- Compensation for variations in fuel quality, altitude, and engine wear
- Consistent engine performance across vary conditions
Troubleshoot common automotive electrical issues
Understand how the electrical system components work unitedly help diagnose common problems:
Battery issues
-
Slow cranking:
Oftentimes indicate a weak battery or poor connections -
Electrical components dim or flicker:
May suggest a fail battery or alternator -
Battery die all night:
Could indicate a parasitic drain
Alternator problems
-
Battery warning light:
Oftentimes the first sign of alternator issues -
Dim lights during acceleration:
Suggest the alternator can’t keep up with demand -
Battery drain promptly after charge:
Indicate the alternator isn’t recharge decent
Relay failures
-
Intermittent component operation:
Frequently cause by relay contacts wear out -
Complete component failure:
May indicate a blown relay -
Click sound but no operation:
Could suggest a relay is activated but not complete the circuit
Starter problems
-
Grind noises during start:
Frequently indicate wear starter gear teeth -
Click but no cranking:
Suggest insufficient current reach the starter -
Intermittent start:
May indicate a fail solenoid or poor connections
Maintain your vehicle’s electrical system
Regular maintenance can prevent many electrical issues:
Battery maintenance
- Keep battery terminals clean and tight
- Check battery voltage regularly (should be 12.4 12.7v when rest )
- Ensure the battery is firmly mounted
- Consider a battery tender for vehicles use infrequently
Alternator care
- Inspect belt tension and condition regularly
- Listen for unusual noises from the alternator
- Check charge voltage (should be 13.8 14.4v with engine run )
General electrical maintenance
- Inspect wiring for damage, particularly in areas subject to heat or movement
- Keep fuse boxes clean and dry
- Carry spare fuses and common relays
- Address warning lights quickly
Conclusion
Understand the components of your vehicle’s electrical system — from relays and thermostats to map sensors and closed loop systems — empower you to diagnose problems and perform basic maintenance. While modern automotive electrical systems are complex, the fundamental principles remain consistent across most vehicles.
With the knowledge of how these systems work unitedly, you can intimately maintain your vehicle, troubleshoot issues when they arise, and make more inform decisions about repairs. Whether you’re a DIY enthusiast or plainly will want to understand what your mechanic is will talk about, this foundation in automotive electrical systems will serve you intimately.
